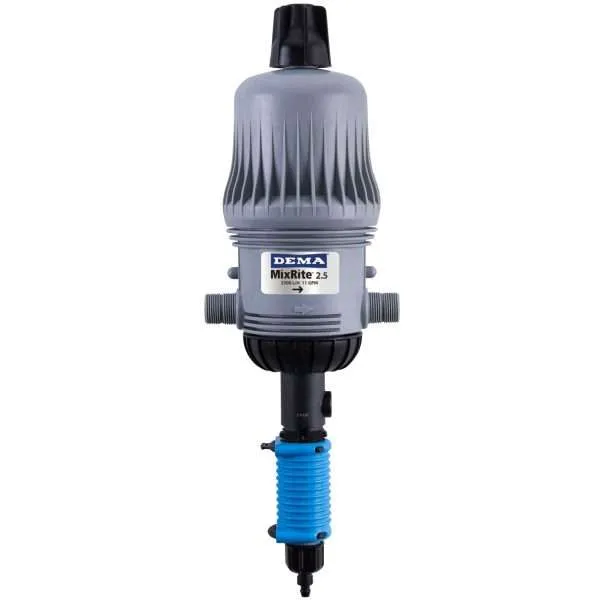

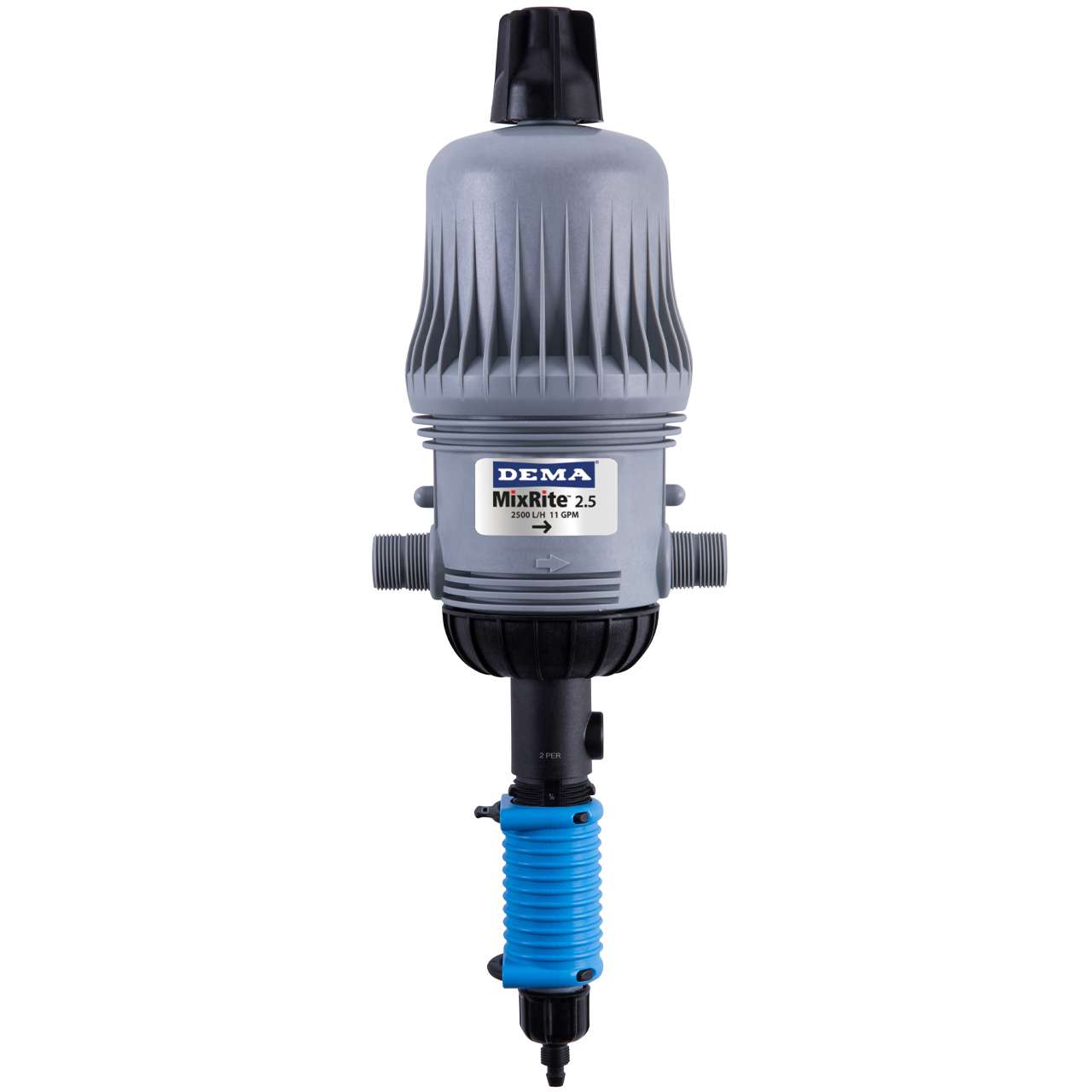

MixRite 500 Series Water Driven Injectors
Chemical Injection for Flow Rates up to 11 GPM
The MixRite 500 Series Water Driven Injectors are designed to operate from .5 to 11 gpm (1.8-41 L per min.) The 500 series is available as a “CW” model with seals and components for mildly aggressive additives, and a PVDF model for the most aggressive additives. DEMA also offers select MixRite units with options such as an internal bypass and/or chemical shut-off.
Detail Information
| Chemical Dispenser | MixRite Pump |
|---|---|
| Power Source | Water powered |
|
Model #
|
Induction Rates
|
Chemical Shut-Off
|
Available Models
|
|
566
|
100/1 (Fixed 1%)
|
No
|
AG
|
|
568
|
12.5/1 (Fixed .8%)
|
No
|
AG
|
|
569
|
1000/1 to 115/1 (.1% to .9%)
|
Yes
|
CW, PVDF
|
|
570
|
384/1 to 50/1 (.3% to 2%)
|
No
|
CW
|
|
571
|
384/1 to 50/1 (.3% to 2%)
|
Yes
|
CW, PVDF
|
|
572
|
250/1 to 25/1 (.4% to 4%)
|
No
|
CW
|
|
573
|
250/1 to 25/1 (.4% to 4%)
|
Yes
|
CW, PVDF
|
|
577IN
|
250/1 to 25/1 (.4% to 4%) |
Yes
|
Internal Bypass
|
|
579IN
|
250/1 to 25/1 (.4% to 4%)
|
Yes
|
Internal Bypass
|
|
All 500 series models have a flow rate of .5 to 11 GPM
|
|||
